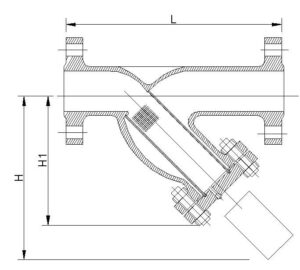

ANSI Y TYPE STRAINER

ANSI Y Type Strainer is the most common and economical type of strainer for permanent applications, suitable for liquid, steam and gas mediums. Due to quick cleaning y-type strainers are used in manifold manners. Other advantages of the y-type strainers are the large filtration area, which provides a high filtration capacity, a low pressure loss and therefore longer operation time

Specifications

1. Y Model, detachable screen
2. Bolted bonnet
3. Stainless steel sieve with different filtering flows
4. Ends with flanges or for BW welding
5. Bleeding plug

Features

Size: from ½” to 12”
Pressure: 150 – 4500LB
Material: carbon steel, low-carbon steel, steel alloy, stainless steel, and other equipment on request
Design ASME B16.34
Distance between flanges: ASME B16.10
Connected in accordance with standard: ASME B16.5
Test API 598
Medium: The filter is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.
Working temperature: Working temperature: from -46ºC or -50ºC (stainless steel constructions) and -29ºC or -46ºC (carbon steel constructions) up to 400℃
